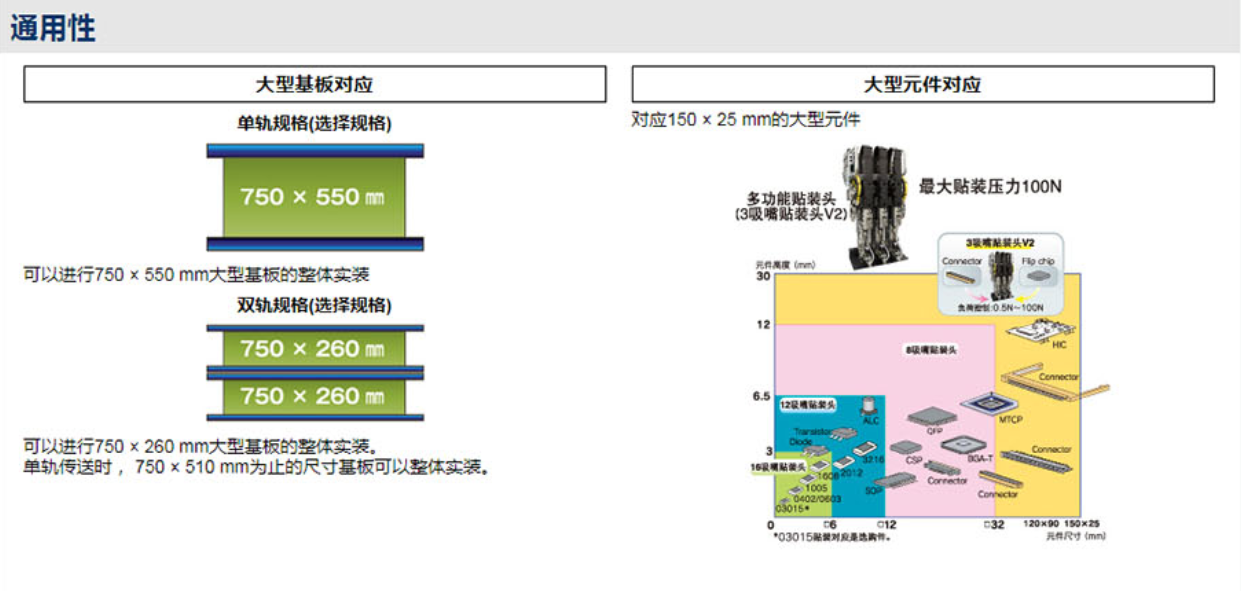

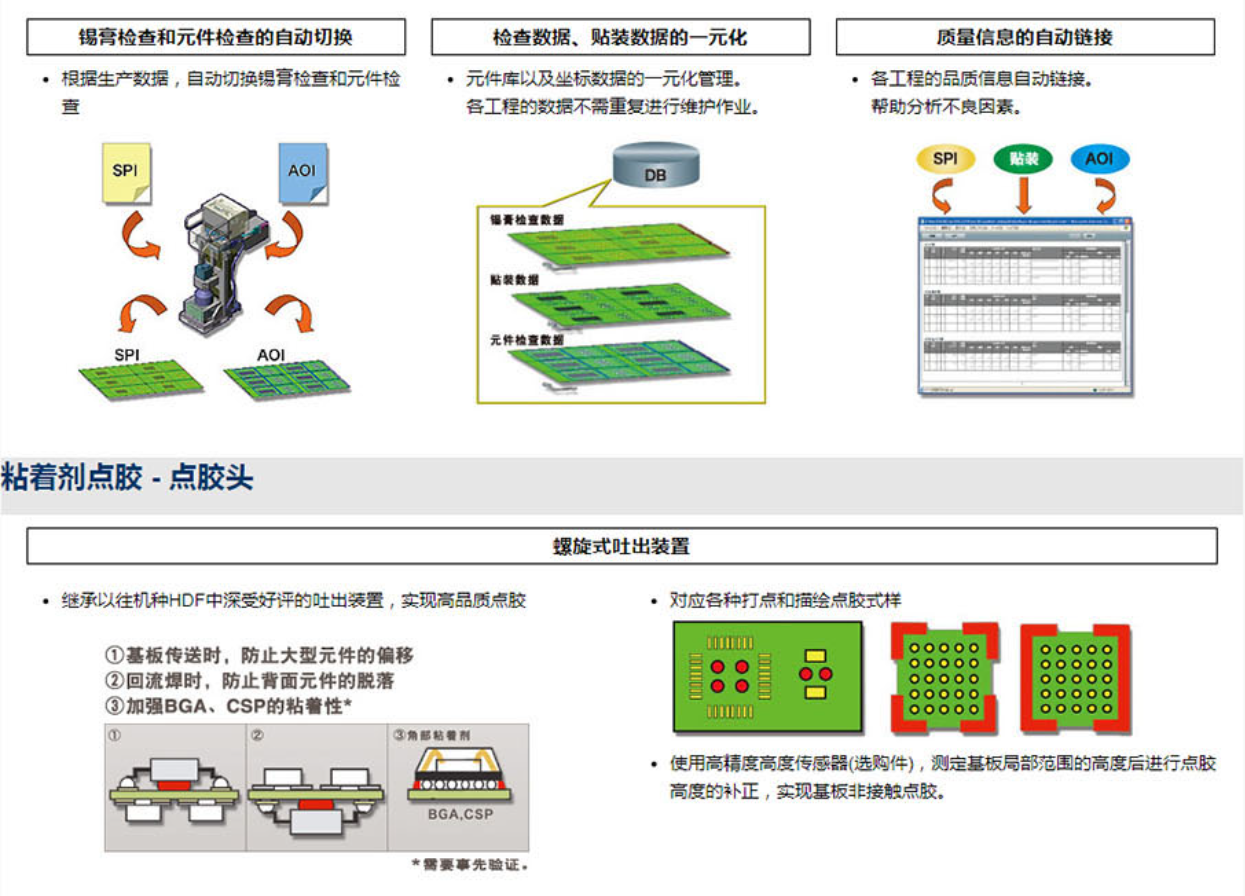

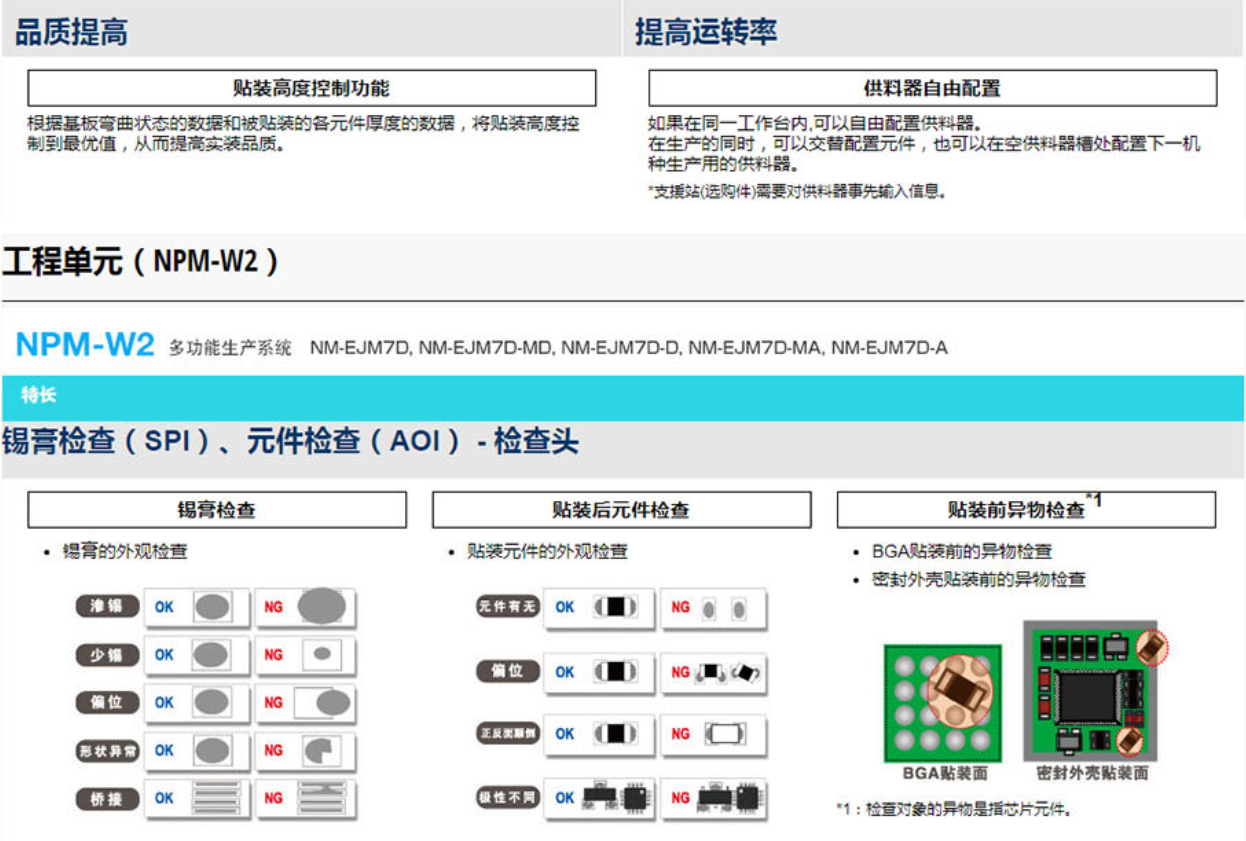

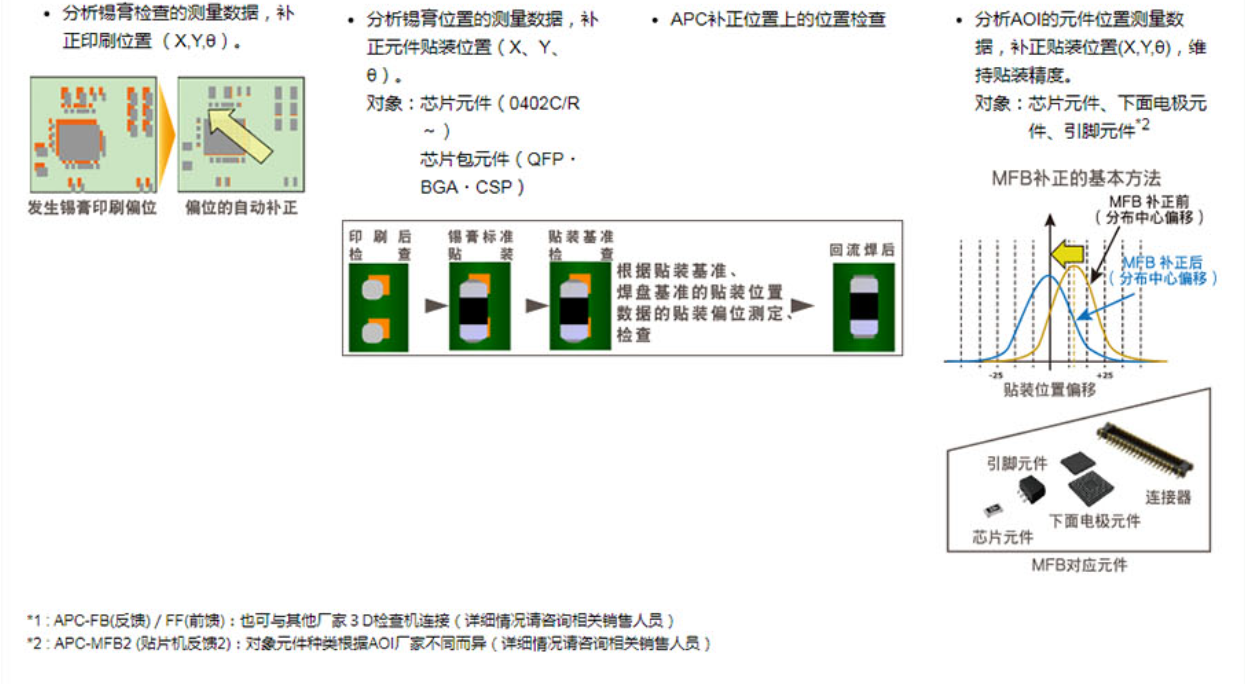

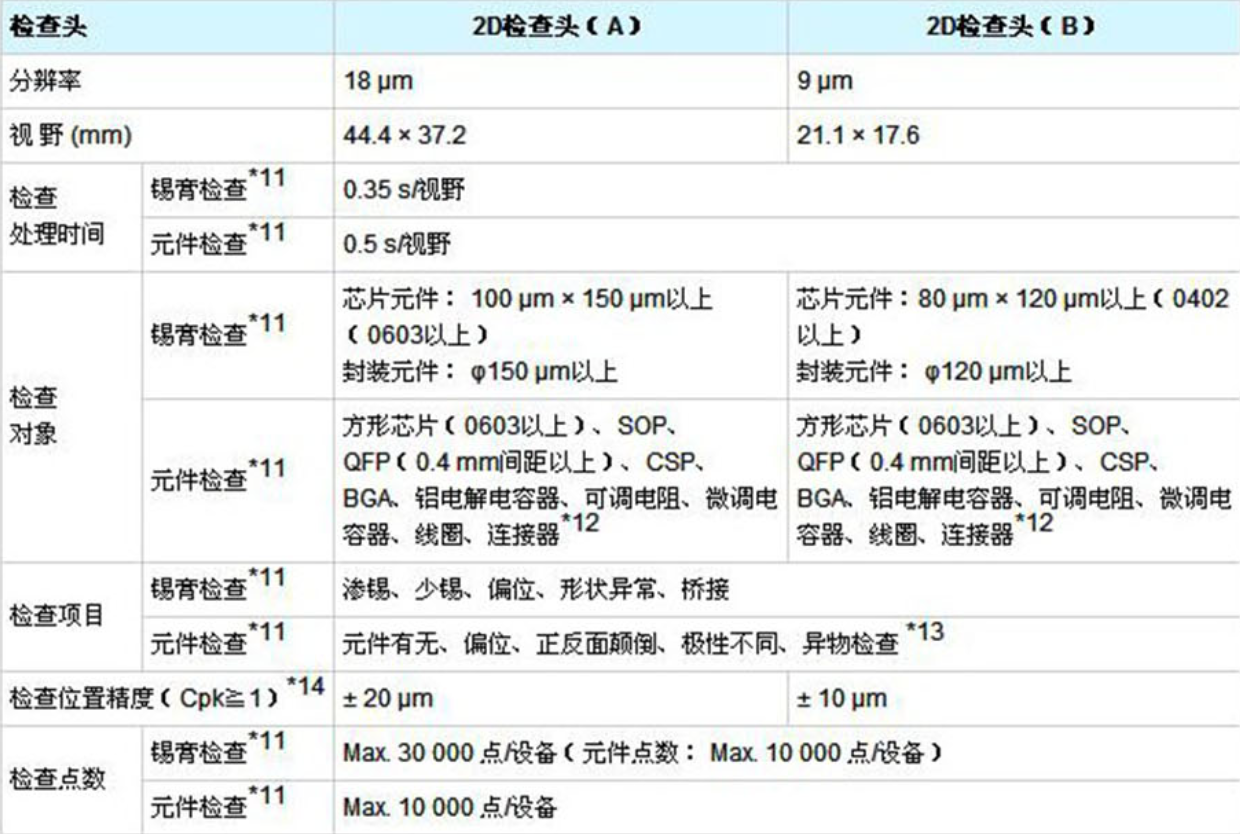

1.Paste＆Check a coherent system,Achieving efficient and high-quality production2.It corresponds to large panels and large components3.Double-track actual(Select Specifications)Achieving high unit area productivity

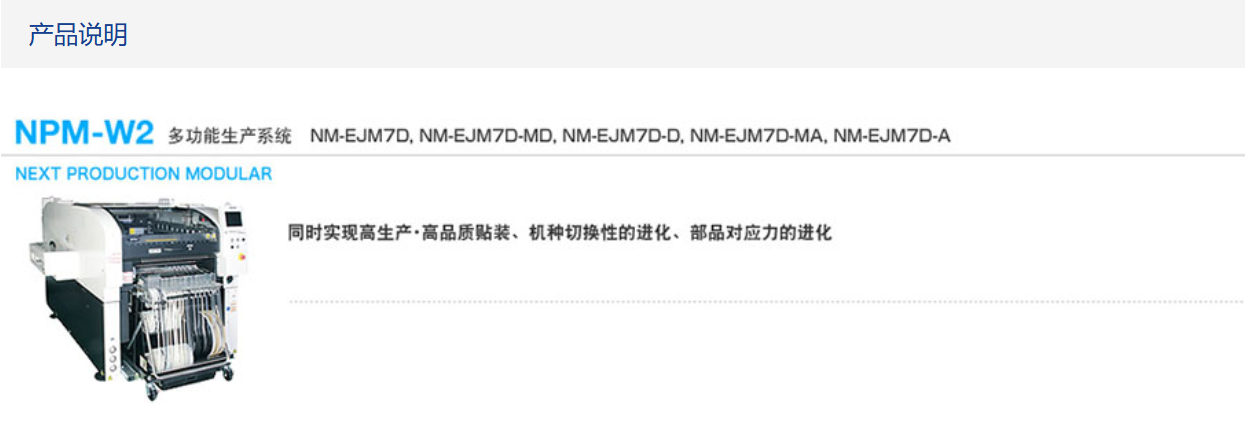

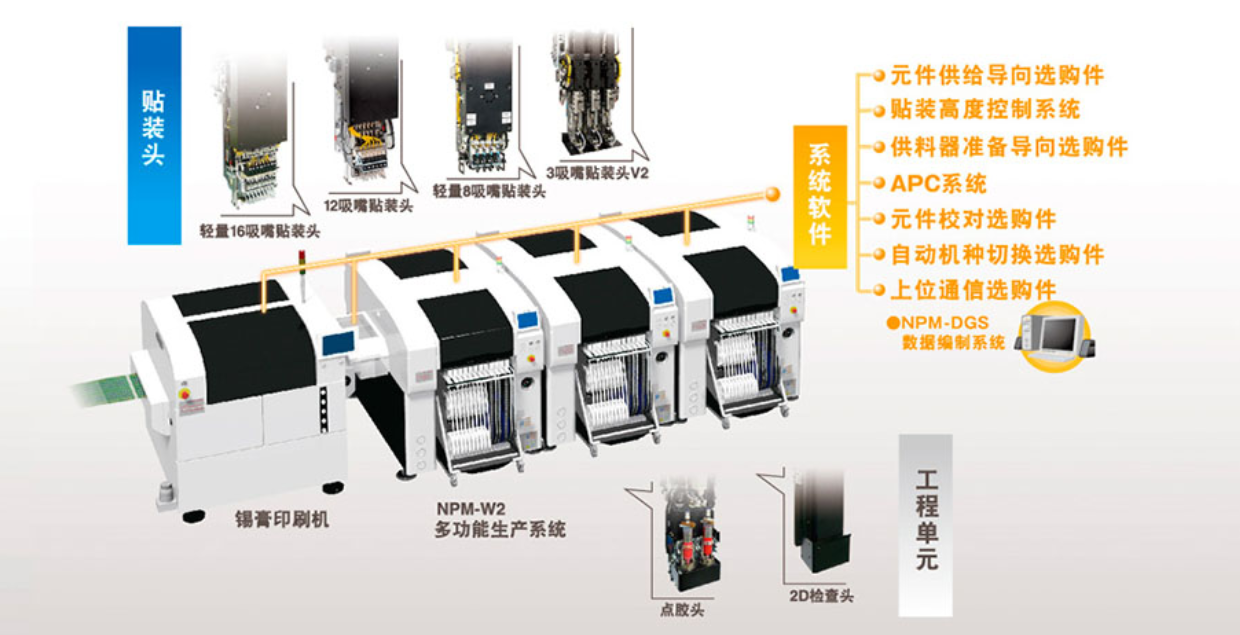

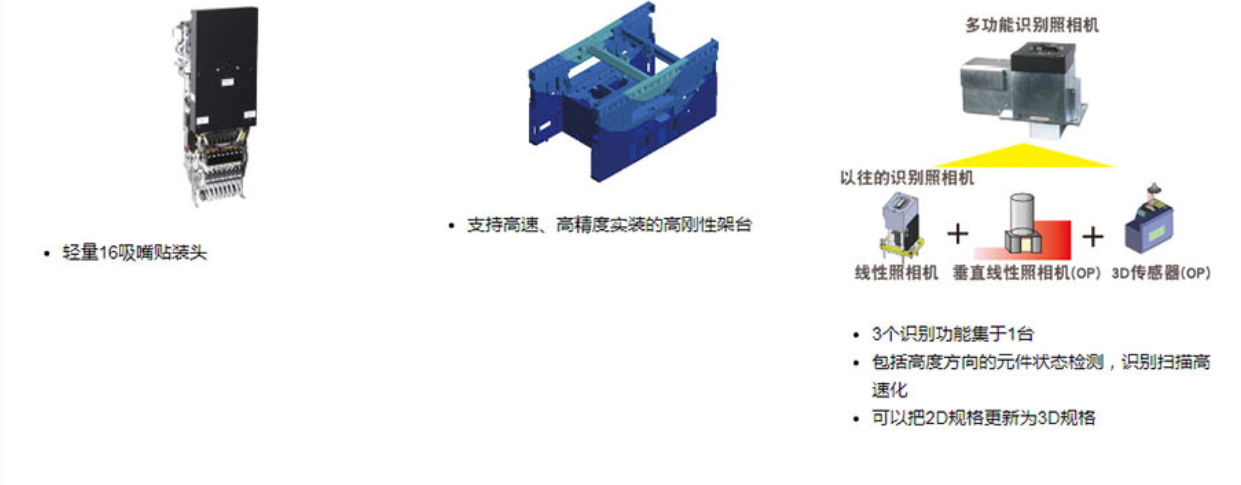

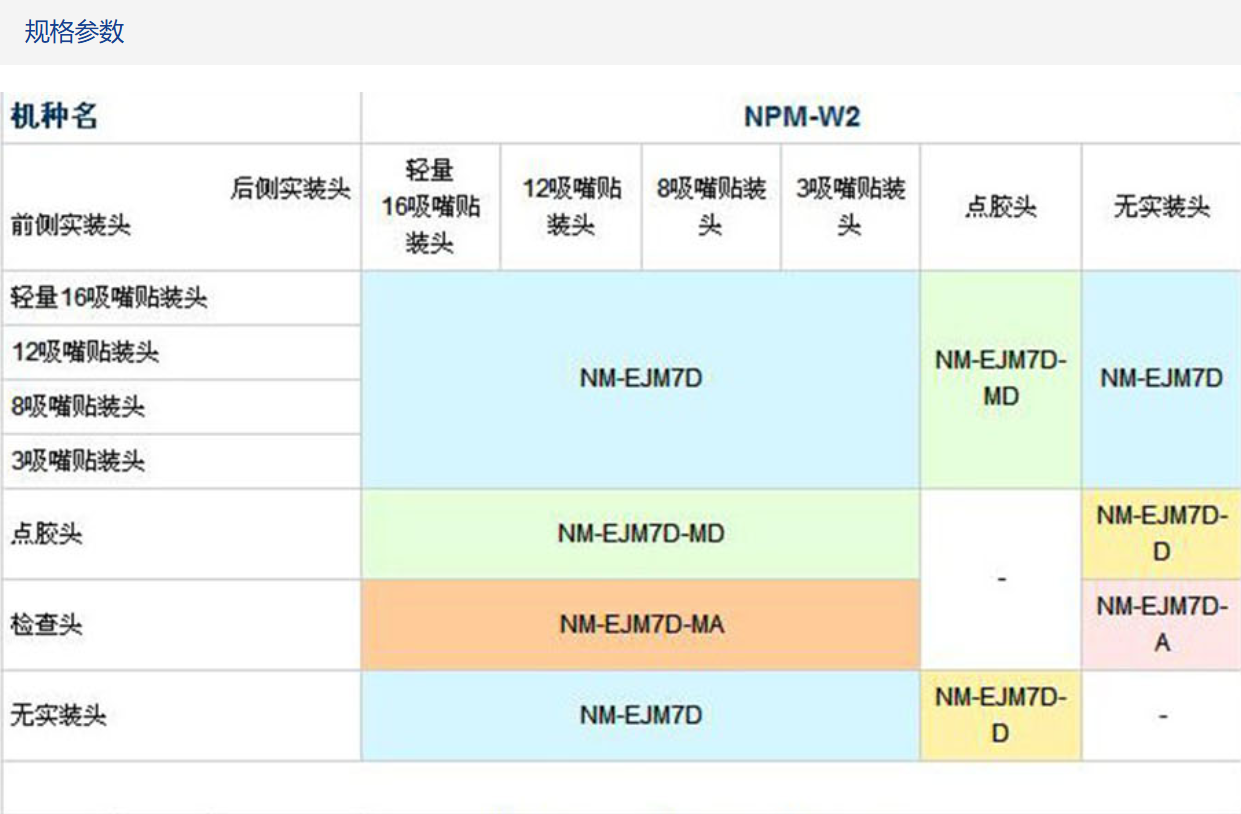

NPM-W2 Multi-purpose paster

Configureable 3/8/16Head+TRAY

High-speed,But it's used in general.More flexible

Type Name:NPM-W2

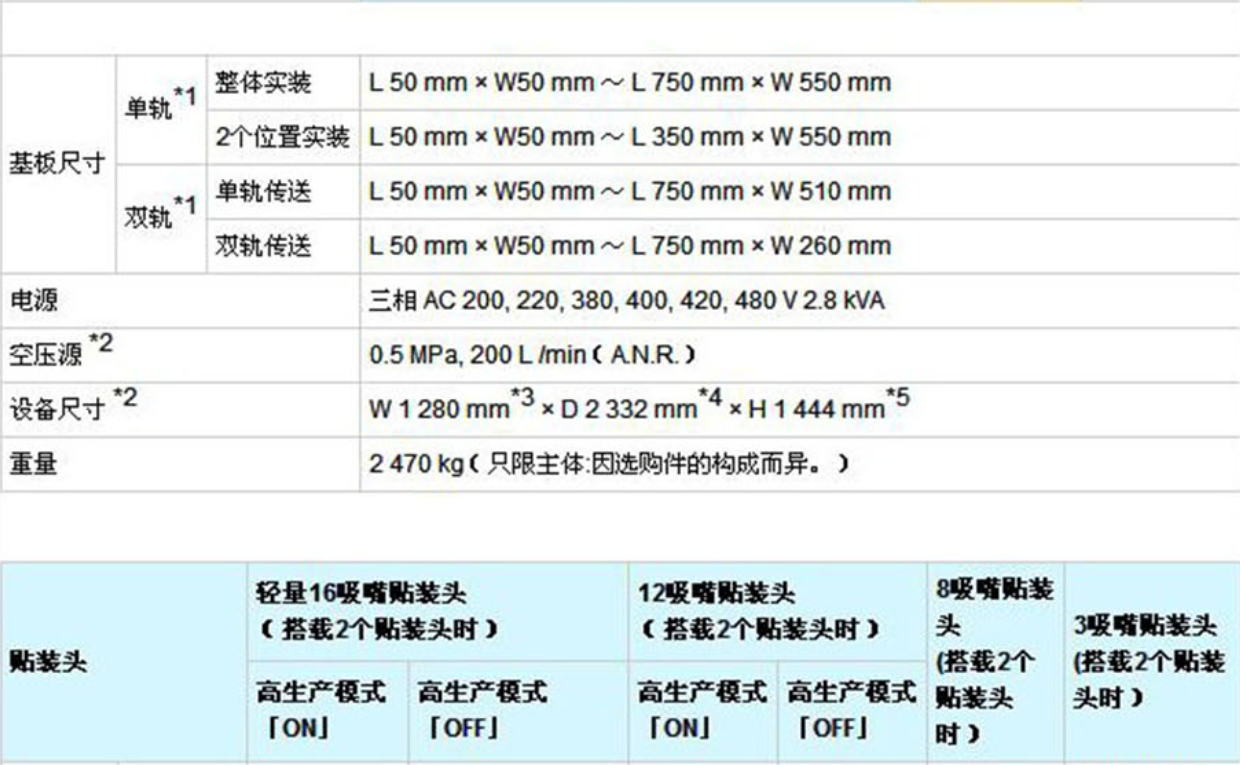

Base size

Single Track*1

Whole actual:L50mm*W50mm~L750mm*W550mm

2A place to live:L50mm*W50mm~L350mm*W550mm

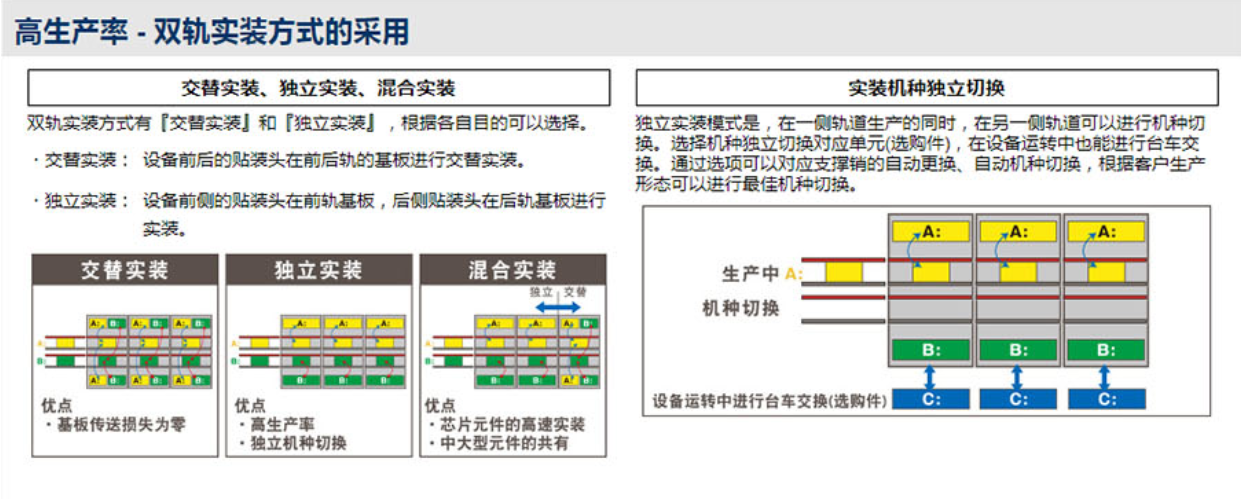

Double Track*1

Single Track Transfer:L50mm*W50mm~L750mm*W510mm

Double-track transport:L50mm*W50mm~L750mm*W260mm

Power:SanAC200,220,380,400,420,480V2.8kVA

Air pressure source*2:0.5MPa,200L/min(A.N.R.)

Device Dimensions*2:W1280mm*3*D2332mm*4*H1444mm*5

Weight:2470kg(Subject only:Depending on the composition of the purchase order.)

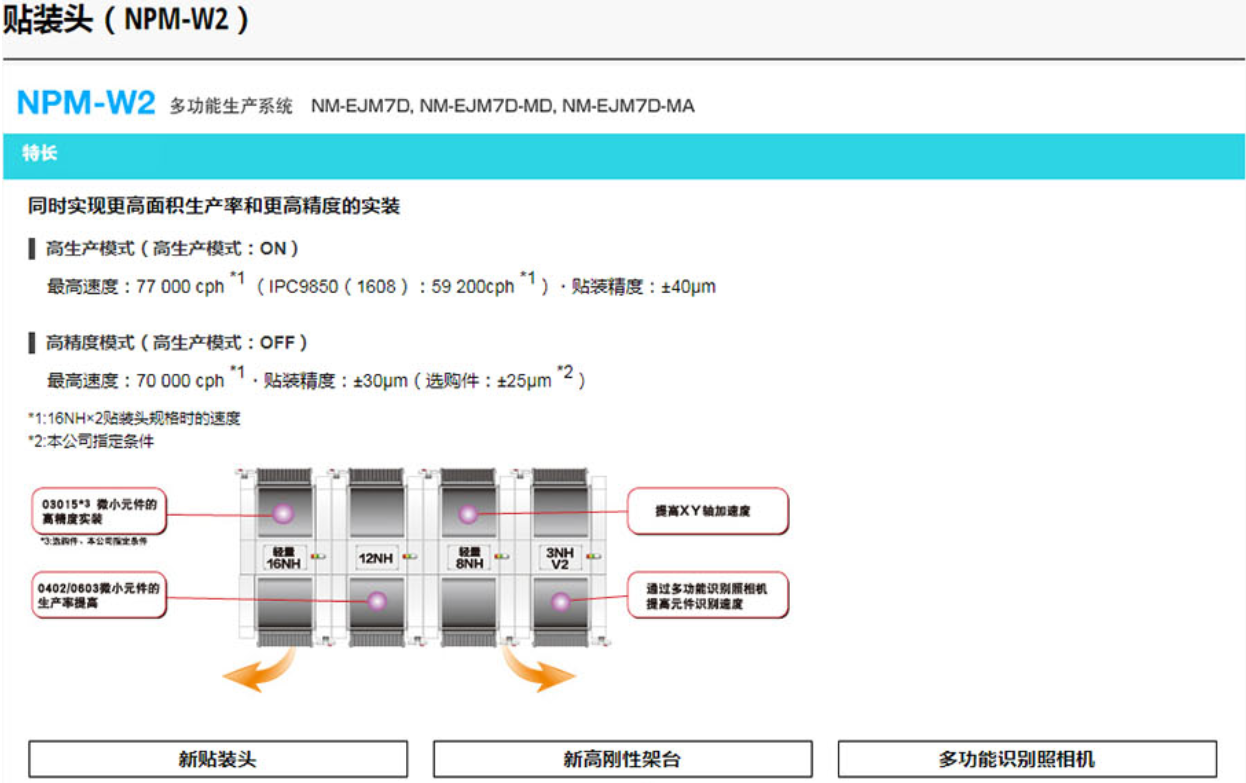

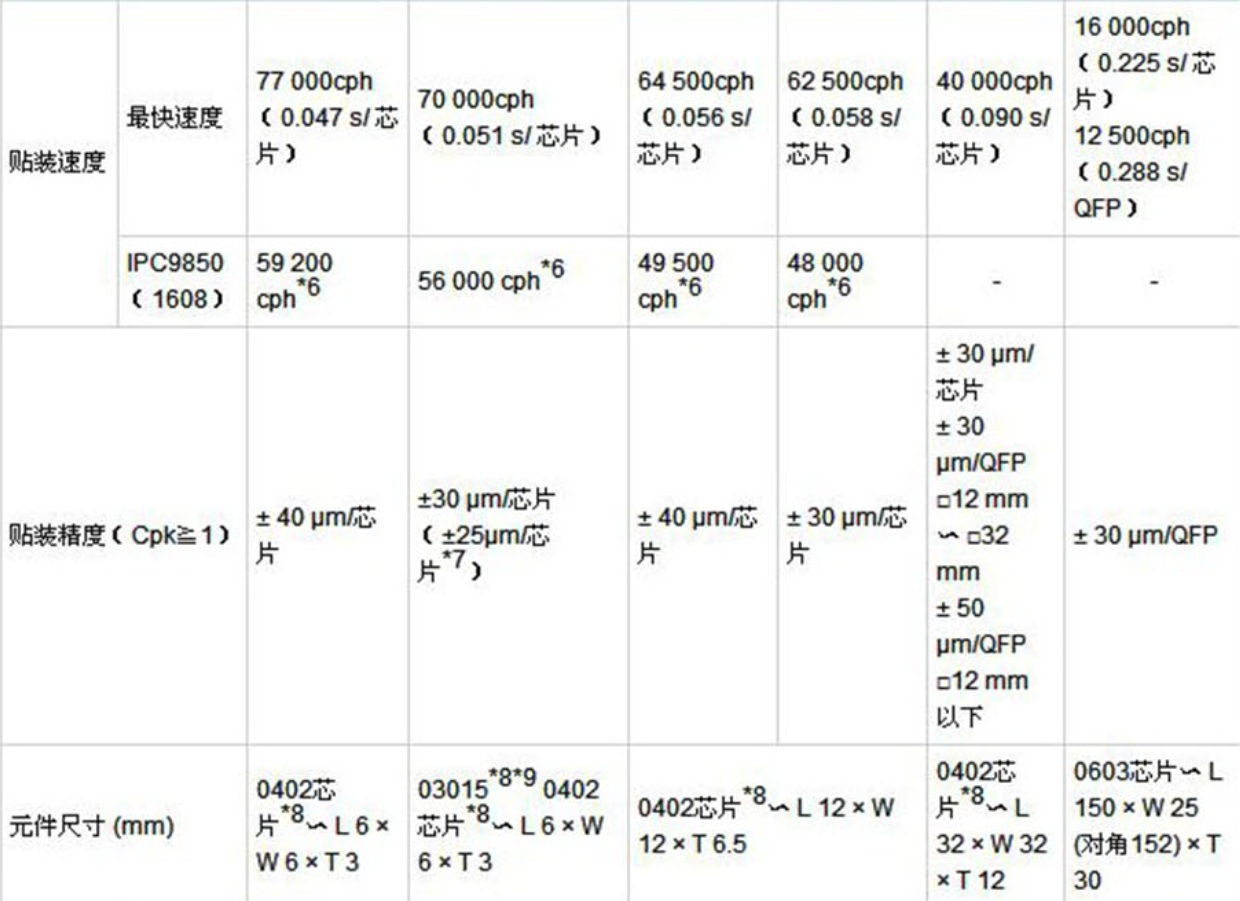

Paste Header:16Snack your head(On board2When you put your head on)ONHigh production patterns

Paste*Speed:77000cph(0.047s/Chip)

IPC9850(1608):59200cph*6

Paste Precision(Cpk≧1):±40μm/Chip

Widget Size(mm):0402Chip*8~L6*W6*T3

Component Supply Tape Bandwidth:8/12/16/24/32/44/56mm

Max,120Company(8mmTape,When double-coding frame(Small roller))

Paste Header:16Snack your head(On board2When you put your head on)OFFHigh production patterns

Paste*Speed:70000cph(0.051s/Chip)

IPC9850(1608):56000cph*6

Paste Precision(Cpk≧1):±30μm/Chip(±25μm/Chip*7)

Widget Size(mm):03015*8*9,0402Chip*8~L6*W6*T3

Paste Header:12Snack your head(On board2When you put your head on)ONHigh production patterns

Paste*Speed:64500cph(0.056s/Chip)

IPC9850(1608):49500cph*6

Widget Size(mm):0402Chip*8~L12*W12*T6.5

Paste Header:12Snack your head(On board2When you put your head on)OFFHigh production patterns

Paste*Speed:62500cph(0.058s/Chip)

IPC9850(1608):48000cph*6

Paste Precision(Cpk≧1):±30μm/Chip

Paste Header:8Snack your head(On board2When you put your head on)

Paste*Speed:40000cph(0.090s/Chip)

Paste Precision(Cpk≧1):±30μm/Chip,±30μm/QFP 12mm~32mm,±50μm/QFP 12mmBelow

Widget Size(mm):0402Chip*8~L32*W32*T12

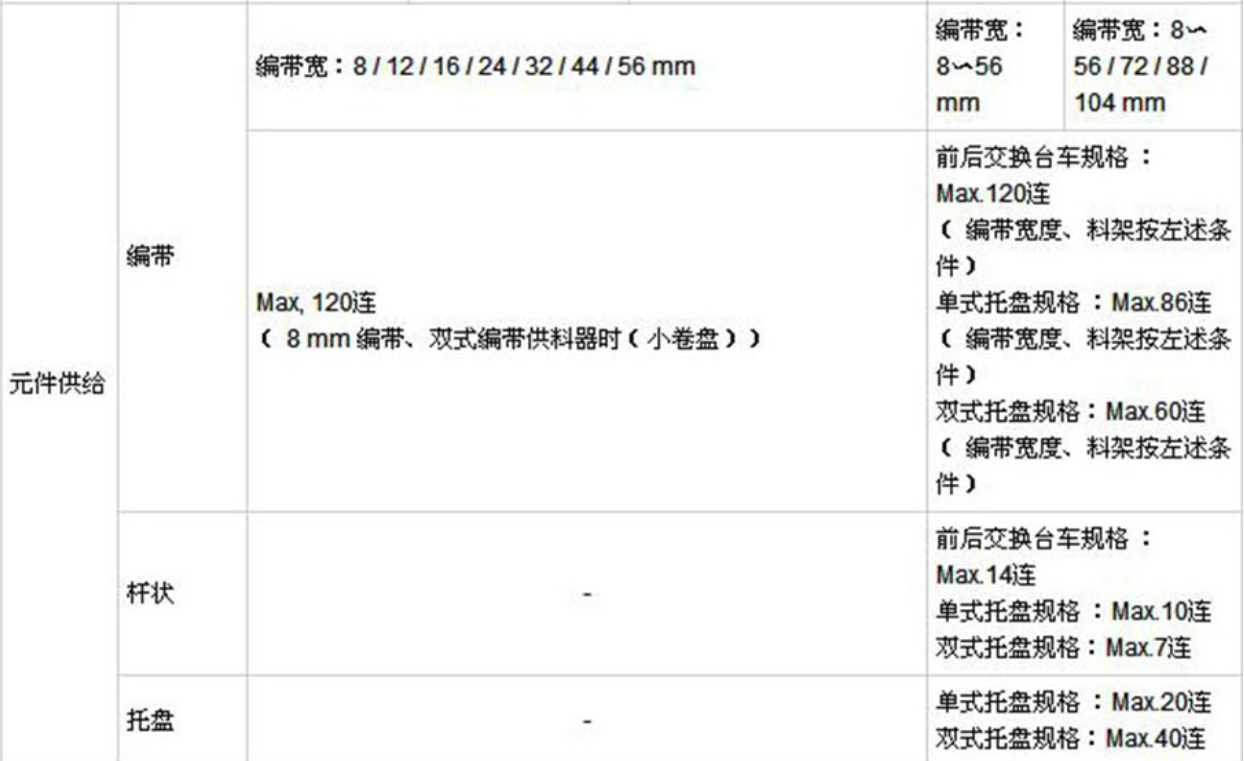

Component Supply Tape Bandwidth:8~56mm

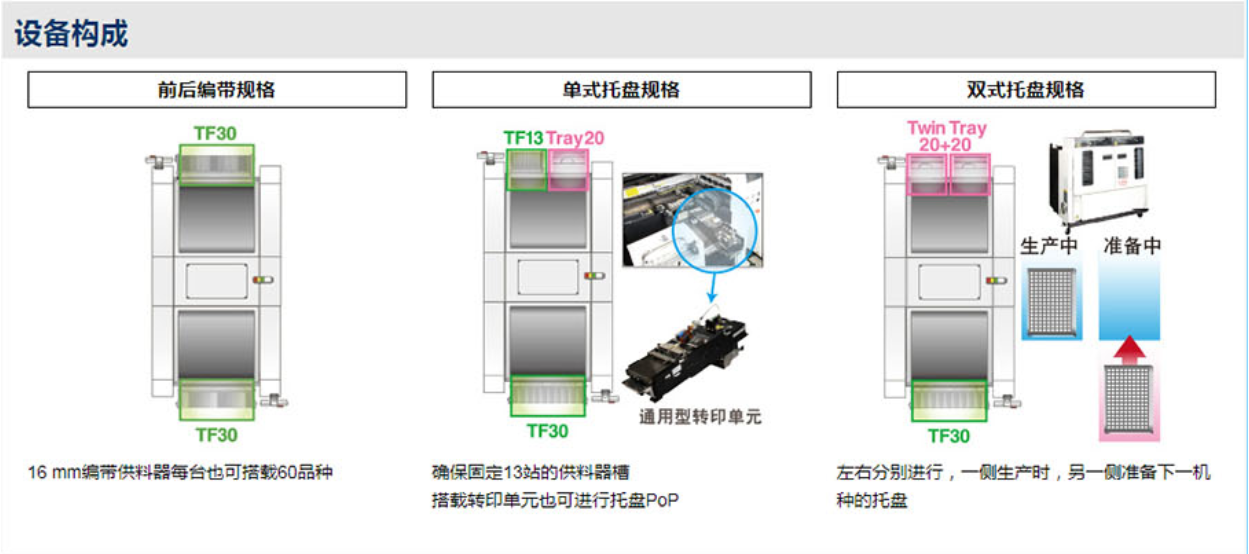

Forward and forward exchange vehicle specifications:Max.120Company(Band width,The material shelf is on left condition)

Single Tray Specification:Max.86Company(Band width,The material shelf is on left condition)

Double Tray Specification:Max.60Company(Band width,The material shelf is on left condition)

Bar:Forward and forward exchange vehicle specifications:Max.14Company

Single Tray Specification:Max.10Company

Double Tray Specification:Max.7Company

Tray:Single Tray Specification:Max.20Company

Double Tray Specification:Max.40Company

Paste Header:3Snack your head(On board2When you put your head on)

Paste*Speed:11000cph(0.33s/QFP)

Paste Precision(Cpk≧1):±30μm/QFP

Widget Size(mm):0603Chip~L150*W25(Diagonal152)*T30

Component Supply Tape Bandwidth:8~56/72/88/104mm

Main specification
Brand	Panasonic
Model	NPMW2
Type 1	SMT Equipment
Type 2	Mounting Equipment
Type 3	Pick and Place Machine
Size	W 1 280 mm * D 2 332 mm * H 1 444 mm
Weight	2 470 kg
Voltage	San AC 200, 220, 380, 400, 420, 480 V
Rated power
Gas source	0.5 MPa,200 L /min(A.N.R.)
Operating System
Other

Basic specifications
Environmental conditions	Temperature	10 °C ~ 35 °C (Paste Header)22 °C ~ 28 °C (Nod the glue)10 °C ~ 28 °C (Check Head)
Environmental conditions	Humidity	25 %RH ~ 75 %RH (But there's no sign)
Environmental conditions	Height	Altitude 1 000 m Below
Production data	Loaded points	Max.10000 Points/Equipment,Max.10000 Points/Production line(Including actual coordinates,Identify tag coordinates,Bad Mark Coordinates,Curved measure point of the base plate.)
Production data	Pattern(Blocks)Number	Max.1000 Pattern/Equipment,Max.1000 Pattern/Production line(Including the base plate bending measure points,Yes Max. 100 Pattern/Equipment.)
Production data	Tag Settings	Max.1000 Points/Equipment,Max.1000 Points/Production line
Widget Paste Orientation	-180° ~ 180° (0.01°Units	NA

Basic performance
Item	Paste Speed (Best conditions)	Paste Precision(Best conditions)
Light 16 Snack your head	77000CPH(Chip:0.047s/chip)70000CPH(Chip: 0.051s/chip)IPC9850(1608C):59200CPH/56000CPH	1).0402, 0603,1005Paste±0.04mm:Cpk≧12).03015, 0402, 0603, 1005Paste±0.03 mm: Cpk≧1;±0.025 mm: Cpk≧1
12 Snack your head	64500 CPH(Chip: 0.056 s/chip)62500 CPH(Chip: 0.058 s/chip)	0402, 0603, 1005Paste±0.04mm: Cpk≧1±0.03 mm: Cpk≧1
Light 8 Snack your head	41600 CPH (Chip: 0.087 s/chip)	1).0402, 0603,1005Paste±0.03mm:Cpk≧12).QFP Paste±0.05 mm: Cpk≧1(12 * 12 mm Below),±0.03 mm: Cpk≧1(Over12*12mm~32*32mm Below)
3Snack your head V2	16640 CPH(Chip: 0.217 s/chip)13000 CPH(QFP: 0.277 s/QFP)	QFP Paste±0.03 mm: Cpk≧1

Object Widget
Item	Widget Size	Widget Height
Light 16 Snack your head	03015 Chip~ 6 * 6 mm	Max.3mm
12 Snack your head	0402 Chip~ 12 * 12 mm(Over 6 * 6 mm WidgetInhalation restrictions.)	Max.6.5mm
Light 8 Snack your head	0402 Chip~ 32 * 32 mm (Over 12 * 12 mm Inhalation limit for widgets.)	Max.12mm
3Snack your head V2	0603 Chip ~ 120 * 90 mm or150 * 25 mm	Max.30mm

Baseboard

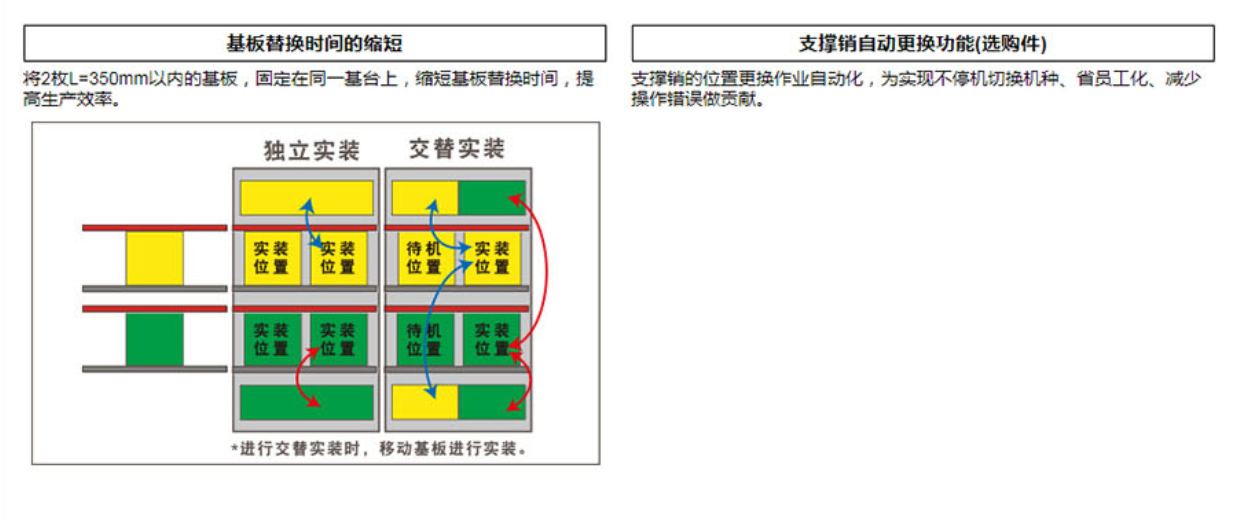

Baseboard replacement time	Single-track conveyor belt	2.3 s (L 350 mm Below)4.4 s (L 350 mm Above ~ L 450 mm Below)5.2 s (L 450 mm Above ~ L 750 mm Below)
Baseboard replacement time	Double-track conveyor belt	Double Track Mode: 0 s (When cycle time is shorter than base panel replacement time,Not really 0 s)Single Track Mode:2.3 s (L 350 mm Below)4.4 s (L 350 mm Above ~ L 450 mm Below)5.2 s (L 450 mm Above ~ L 750 mm Below)
Single-track conveyor belt	Base size	50 * 50 mm ~ 750 * 550 mm
Single-track conveyor belt	The possible range of adhesives	50 * 44 mm ~ 750 * 544 mm
Single-track conveyor belt	Baseboard thickness	0.3 mm ~ 8.0 mm
Single-track conveyor belt	Base mass	3.0 kgBelow (Loaded State,Including load weight.)
Single-track conveyor belt	Flow	Left→Right,Left←Right (Select Specifications)
Double-track conveyor belt	Base size	Double Track Mode : 50 * 50 mm ~ 750 * 260 mmSingle Track Mode: 50 * 50 mm ~ 750 * 510 mm
Double-track conveyor belt	The possible range of adhesives	Double Track Mode : 50 * 44 mm ~ 750 * 254 mmSingle Track Mode: 50 * 44 mm ~ 750 * 504 mm
Double-track conveyor belt	Baseboard thickness	0.3 mm ~ 8.0 mm
Double-track conveyor belt	Base mass	3.0 kgBelow (Loaded State,Including load weight.)
Double-track conveyor belt	Flow	Left→Right,Left←Right (Select Specifications)
Baseboard Transfer Height	900 mm ~ 920 mm	NA

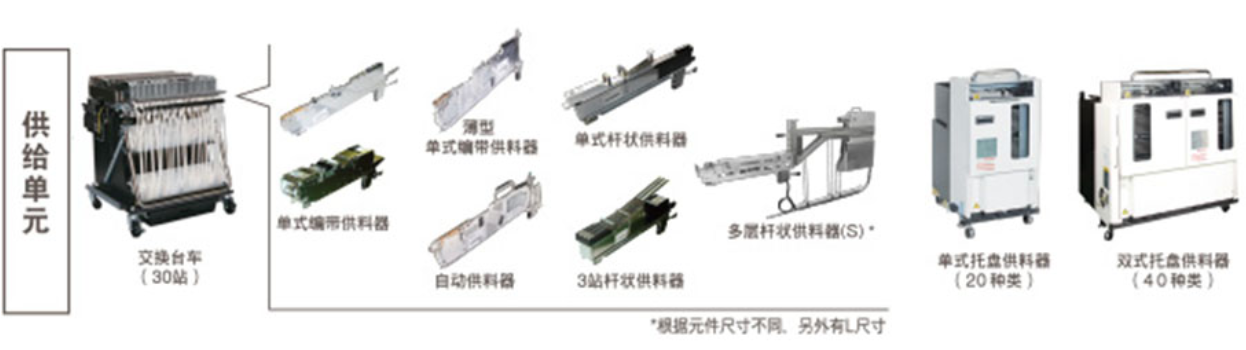

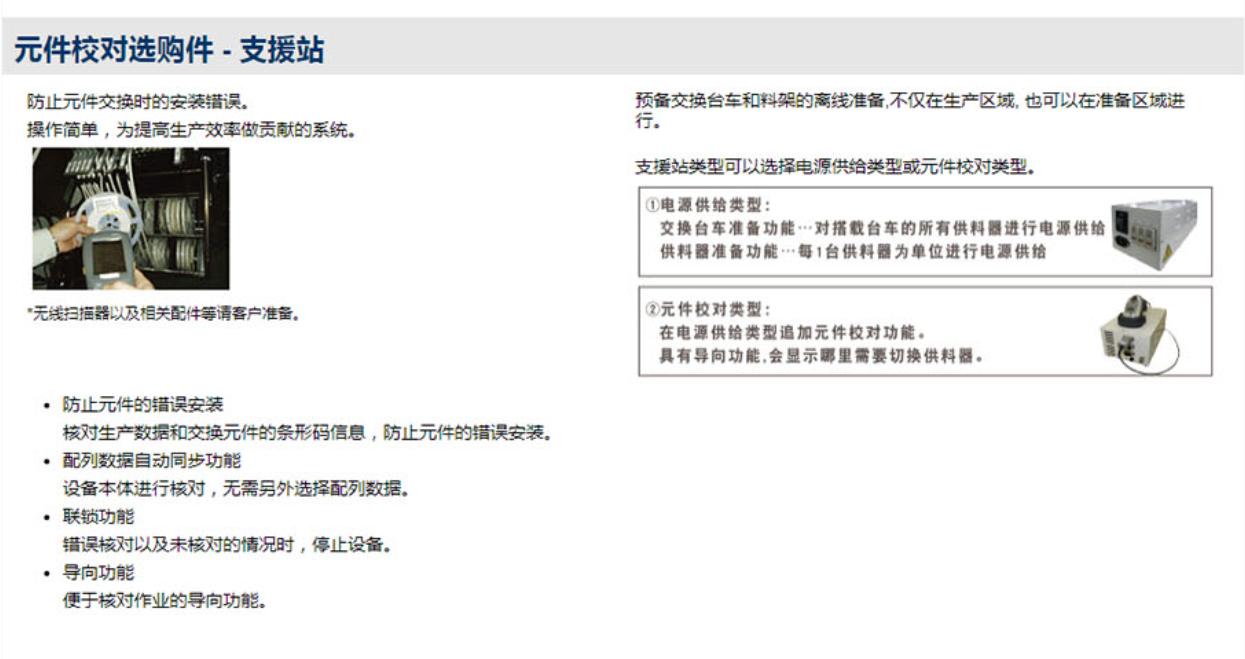

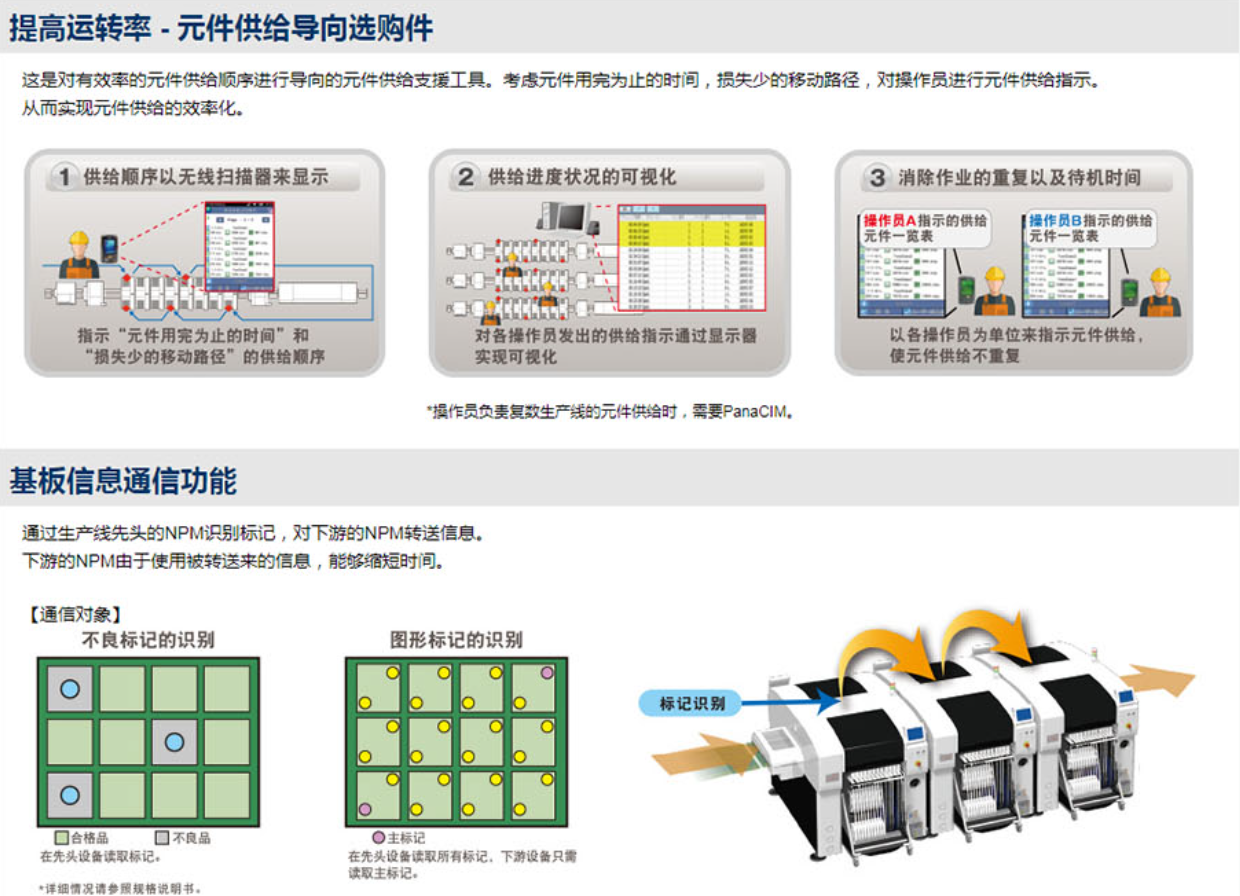

Component Supply Department
Tape	4 mm	Max. 120 Station : A thin, single-band feeder
Tape	8 mm	Max. 120 Station : Double/A thin, single-band feeder (Small roller)Max. 60 Station : Double/A thin, single-band feeder (Big roll) Max. 60 Station : Single-band feeder
Tape	12/16 mm	Max. 60 Station
Tape	24/32 mm	Max. 30 Station
Tape	44/56 mm	Max. 20 Station
Tape	72 mm	Max. 14 Station : Only 3 Snack your head
Tape	88 mm	Max. 12 Station : Only 3 Snack your head
Tape	104 mm	Max. 10 Station : Only 3 Snack your head
Single rod-type feeder	NA	Max. 30 Station : Only 8 Snack your head,3 Snack your head
3 Station pole-style belt feeder	NA	Max. 14 Station : Only 8 Snack your head,3 Snack your head
Stacked rod-type feeder(S/L)	NA	Max. 8 Station : Only 8 Snack your head,3 Snack your head
Single Tray	NA	Max. 20 individual : Only 8 Snack your head,3 Snack your head
Double Tray	NA	Max. 40 individual : Only 8 Snack your head,3 Snack your head
Automatic feeder	NA	Max. 120 Station: When using an attachment to an automatic feeder
